Multi-channel Power/Pressure Distribution Sensor Measurement Device

Human-like sensing in robotics begins

with touch. Understanding pressure,

force, vibration, and temperature —

just like human skin.

● ARRAY SENSOR

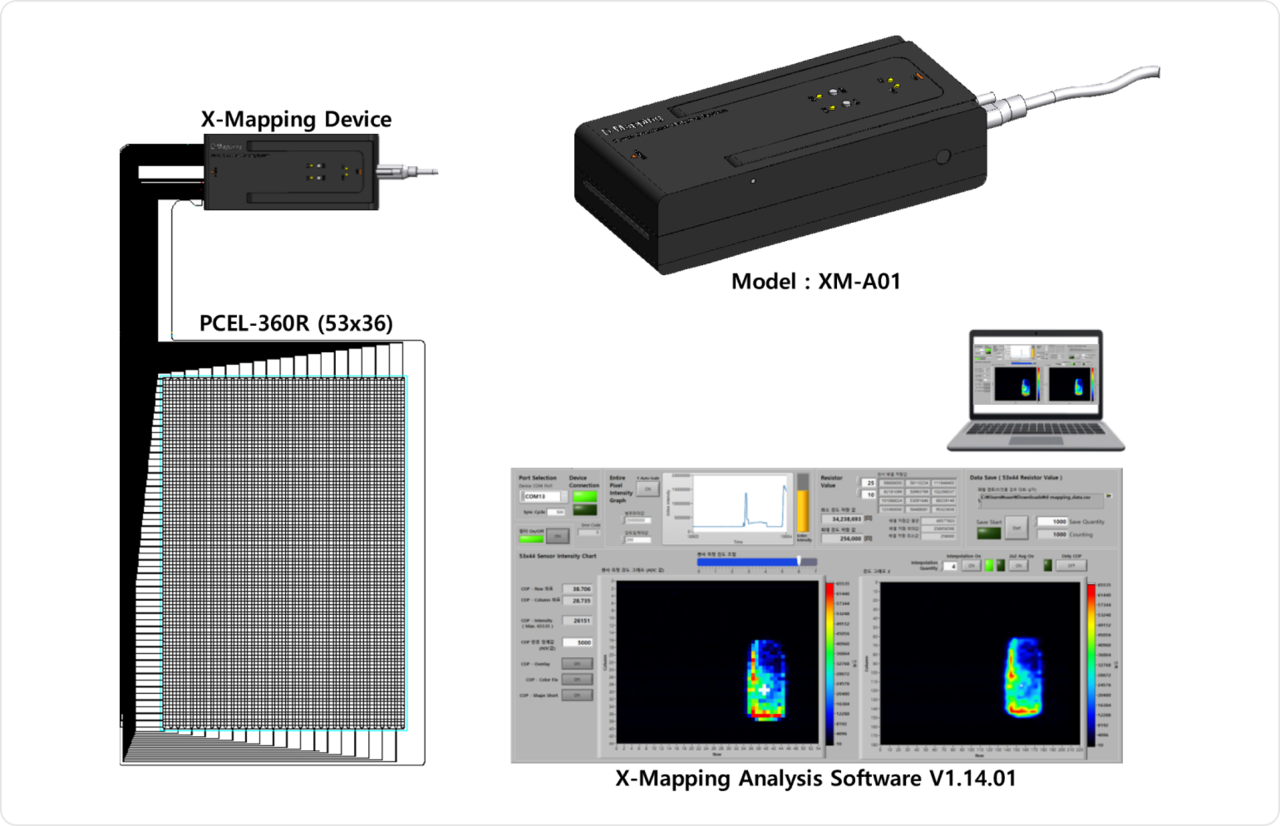

Array 53x44 Sensor Distribution Measurement System

The array 53x44 sensor distribution measurement system provides measurement and analysis solutions of the decompression (pressure) sensor with up to the 53x44 alignment. It supports measurement of the Force Sensing Resistor (FSR) sensor type, as well as X-mapping, software dedicated to carbonless duplicating paper for a large-area pressure sensor. This is a product that can monitor and visually interpret distribution, geometrical tolerance, degree of flatness, and pressure for the area from the 2D power sensor.

Product Overview

X-Mapping Measurement System & Sensor

● ARRAY SENSOR

Array 53x44 Sensor Distribution

Measurement System

The array 53x44 sensor distribution measurement system provides measurement and analysis solutions of the decompression (pressure) sensor with up to the 53x44 alignment. It supports measurement of the Force Sensing Resistor (FSR) sensor type, as well as X-mapping, software dedicated to carbonless duplicating paper for a large-area pressure sensor. This is a product that can monitor and visually interpret distribution, geometrical tolerance, degree of flatness, and pressure for the area from the 2D power sensor.

The array 53x44 decompression sensor measurement system provides measurement and analysis solutions of the decompression (pressure) sensor with up to the 53x44 alignment. It supports measurement of the Force Sensing Resistor (FSR) sensor type, as well as software where resistance measurement and pressure mapping for up to 2,332 measurement points can be performed.

Product Overview

X-Mapping Measurement System & Sensor

The array 53x44 decompression sensor measurement system provides measurement and analysis solutions of the decompression (pressure) sensor with up to the 53x44 alignment. It supports measurement of the Force Sensing Resistor (FSR) sensor type, as well as software where resistance measurement and pressure mapping for up to 2,332 measurement points can be performed.

Supports measurement of the Force Sensing Resistor

(FSR) sensor type



Supports software where resistance measurement and pressure mapping for up to 2,332 measurement points can be performed

The focal point of the measured pressure (COP: Center Of Pressure) can be checked.

You can partially designate the measurement area or understand multi-COP by multiplexing.

It provides measurement starting from the resistance value of 8 ㏀. Upon fine adjustment, you can measure from the resistance value of 400 Ω.

Key Features

Decompression Sens

Pressure Measurement

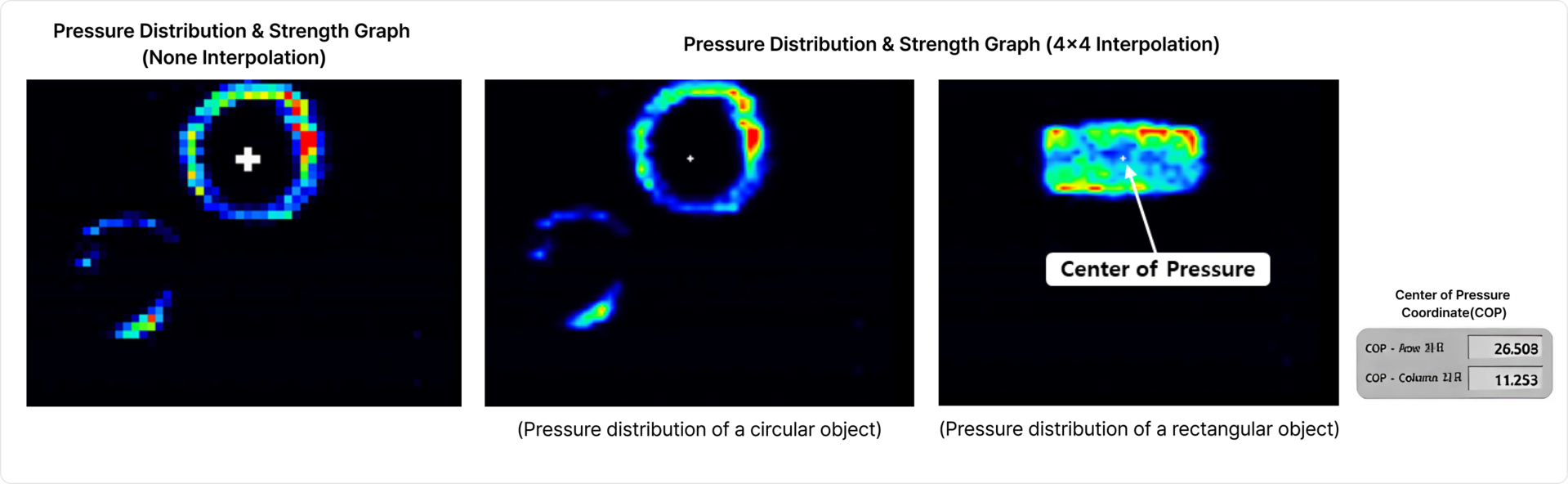

You can see an intuitive pressure strength and check the focal point of the measured pressure (COP: Center Of Pressure). Moreover, you can understand Multi-COP by partially designating the measurement area or multiplexing.

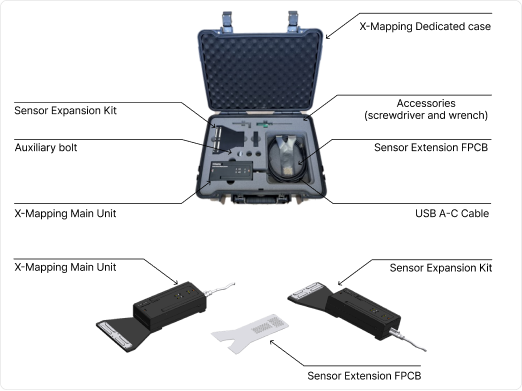

Product Composition

  Item  Content
  Number of Measured Arrays
  53 × 44 (row × column), 2,332 Point
  Measured Resolution
  16 bits
   Measured Speed
  Up to 100 Frame/sec
  Power Consumptio  1.5 W (300mA @ 5V), USB Powered
  Communication  USB 2.0 (High Speed)
  Communication Cabl  USB A-C (Up to 5m), Locking Type
  Size  62 × 140.5 × 34 mm
  Weight  375 gram, Aluminum Case

● X-Mapping

Large-area pressure detection viewer

software (X-Mapping)

X-mapping is Physionics’ software dedicated to carbonless duplicating paper for a large-area pressure sensor. It provides a function that can monitor and visually interpret distribution, geometrical tolerance, degree of flatness, and pressure for the area from the 2D power sensor.

Key Features

Main Functions

Visualization

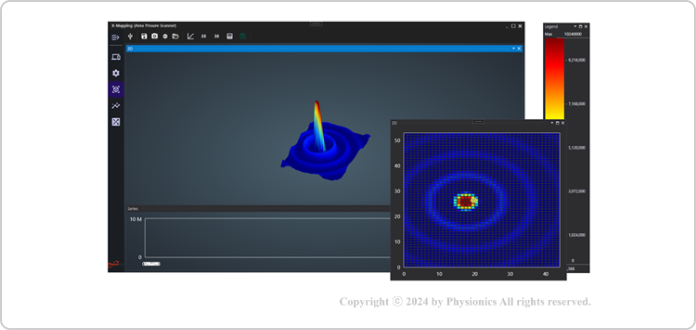

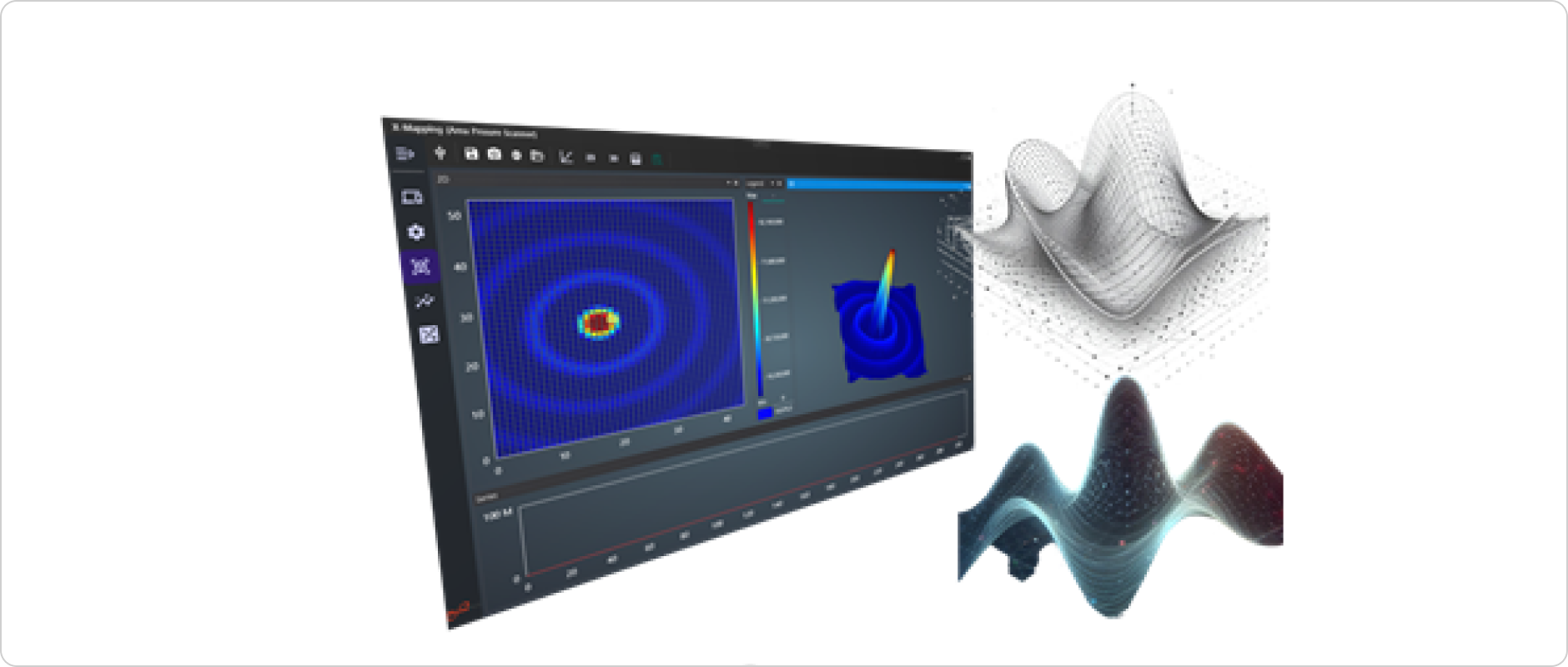

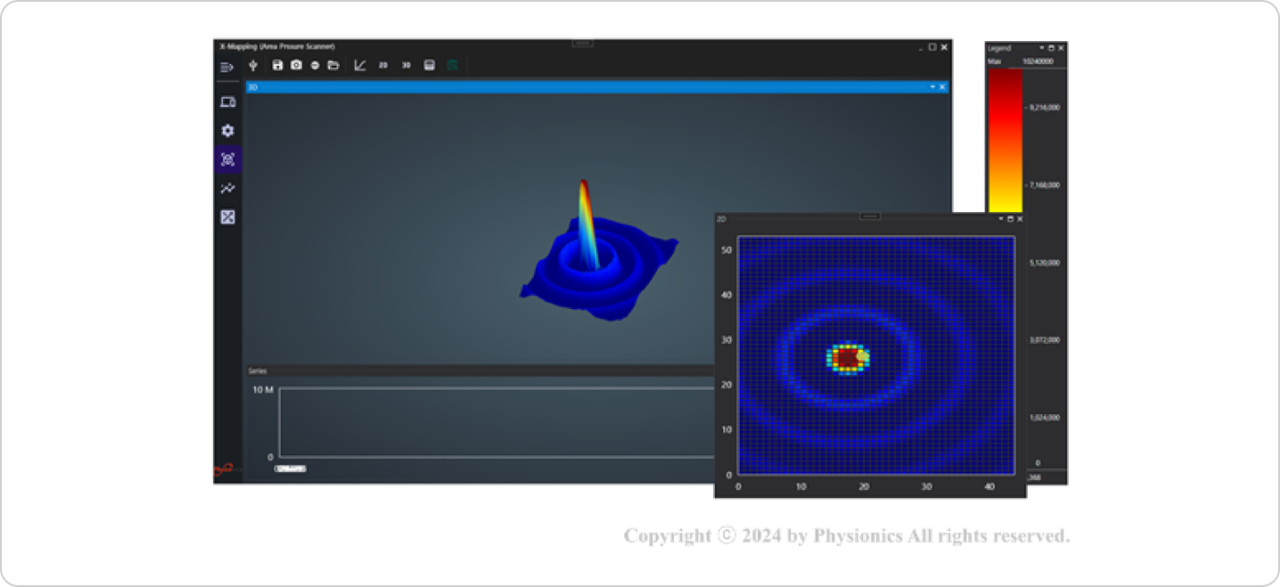

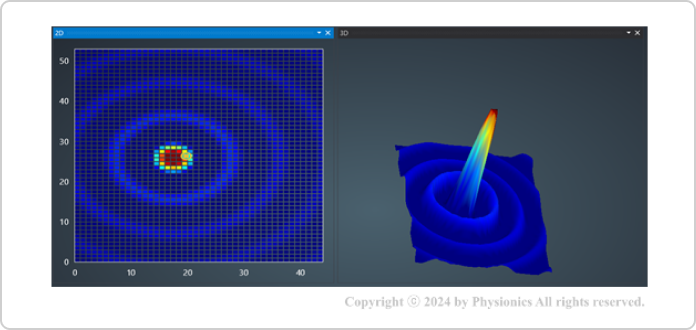

It provides a function to visualize pressure for the area in 2D, 3D, and time series.

Customizing UI

You can configure by freely aligning or removing frequently used functions.

List of Functions

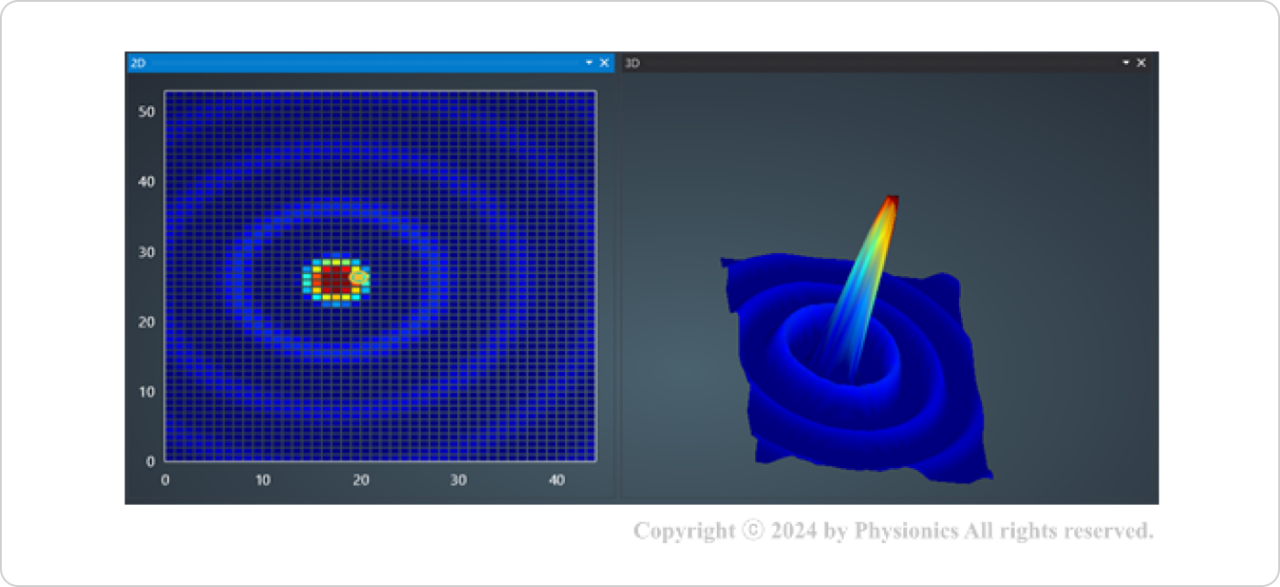

2D visualization
3D visualization
Visualization of center of gravity trajectory
User UI customizing
Visualization of center of gravity
Pressure distribution image snapshot
Real-time data record
Visualization of single-cell pressure time series
Data analysis function
(accumulated force, activated area, max. value,
min. value, location of center of gravity)


Supports measurement of the Force Sensing Resistor (FSR) sensor type



Supports software where resistance

measurement and pressure mapping for up to

2,332 measurement points can be performed


The focal point of the measured pressure

(COP: Center Of Pressure) can be checked.



You can partially designate the measurement

area or understand multi-COP by multiplexing.


It provides measurement starting from the resistance

value of 8 ㏀. Upon fine adjustment, you can

measure from the resistance value of 400 Ω.

Key Features

Decompression Sensor Pressure Measurement

You can see an intuitive pressure strength and check the focal point of the measured pressure (COP: Center Of Pressure).

Moreover, you can understand Multi-COP by partially designating the measurement area or multiplexing.

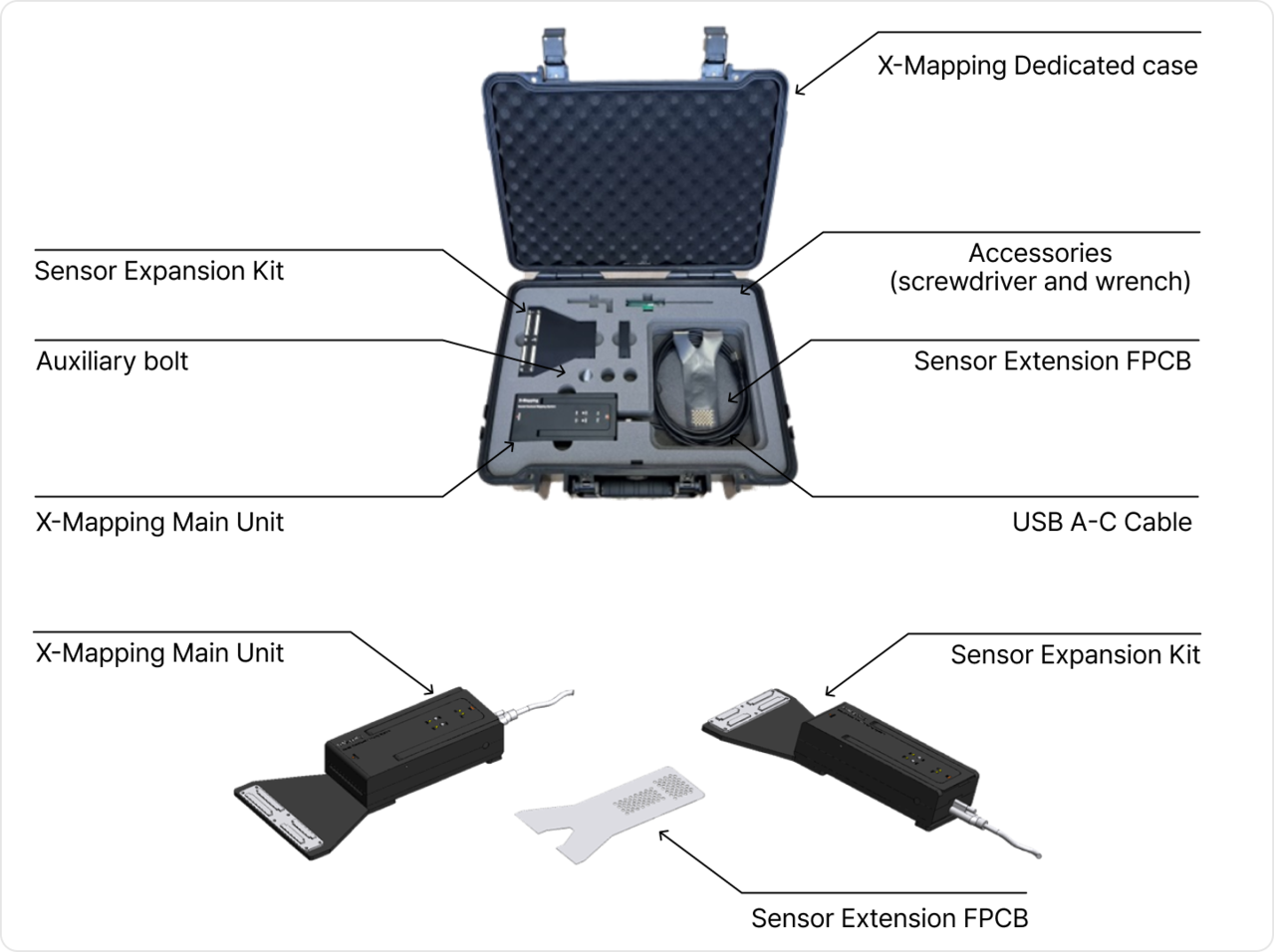

Product Composition

    Item    Content
    Number of Measured Arrays
    53 × 44 (row × column), 2,332 Point
    Measured Resolution
    16 bits
     Measured Speed
    Up to 100 Frame/sec
    Power Consumptio    1.5 W (300mA @ 5V), USB Powered
    Communication    USB 2.0 (High Speed)
    Communication Cabl    USB A-C (Up to 5m), Locking Type
    Size    62 × 140.5 × 34 mm
    Weight    375 gram, Aluminum Case

● X-Mapping

Large-area pressure detection viewer software (X-Mapping)

X-mapping is Physionics’ software dedicated to carbonless duplicating paper for a large-area pressure sensor. It provides a function that can monitor and visually interpret distribution, geometrical tolerance, degree of flatness, and pressure for the area from the 2D power sensor.

Key Features

Main Functions

Visualization

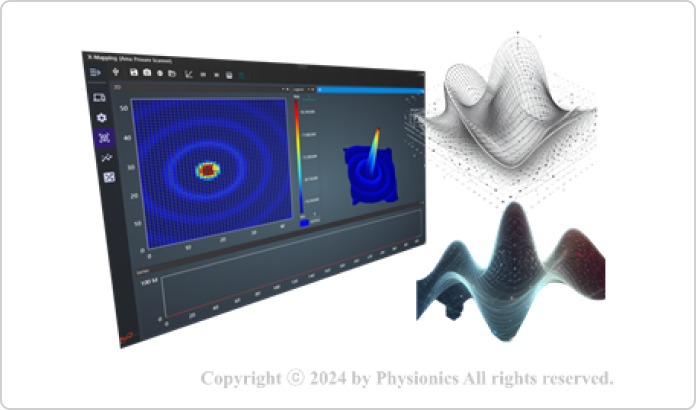

It provides a function to visualize pressure for the area in 2D, 3D, and time series.

Customizing UI

You can configure by freely aligning or removing frequently used functions.

List of Functions

2D visualization
Visualization of center of gravity trajectory
User UI customizing
Visualization of center of gravity
3D visualization
Pressure distribution image snapshot
Real-time data record
Visualization of single-cell pressure time series
Data analysis function (accumulated force, activated area, max. value, min. value, location of center of gravity)
