● BIO-PATCH SENSOR
High-performance Biosignal Extraction & Monitoring System using Adhesive Patch-type Dry Electrode
This is a skin-attachable biosignal monitoring product that has resolved problems that had previously occurred when wearing for a long time. We develop a monitoring device where a flexible type of patch that is highly attachable on skin surface and reduces rashes is applied. Through this technology, we are expecting it to play a role in real-time information delivery, home healthcare services, customized monitoring services thanks to long-time measurement and digitization, improving the quality of life.
● BIO-PATCH SENSOR
High-performance Biosignal Extraction & Monitoring System using Adhesive Patch-type Dry Electrode
This is a skin-attachable biosignal monitoring product that has resolved problems that had previously occurred when wearing for a long time. We develop a monitoring device where a flexible type of patch that is highly attachable on skin surface and reduces rashes is applied. Through this technology, we are expecting it to play a role in real-time information delivery, home healthcare services, customized monitoring services thanks to long-time measurement and digitization, improving the quality of life.
Product Overview
Biosignal measurement module using adhesive patch-type dry electrode

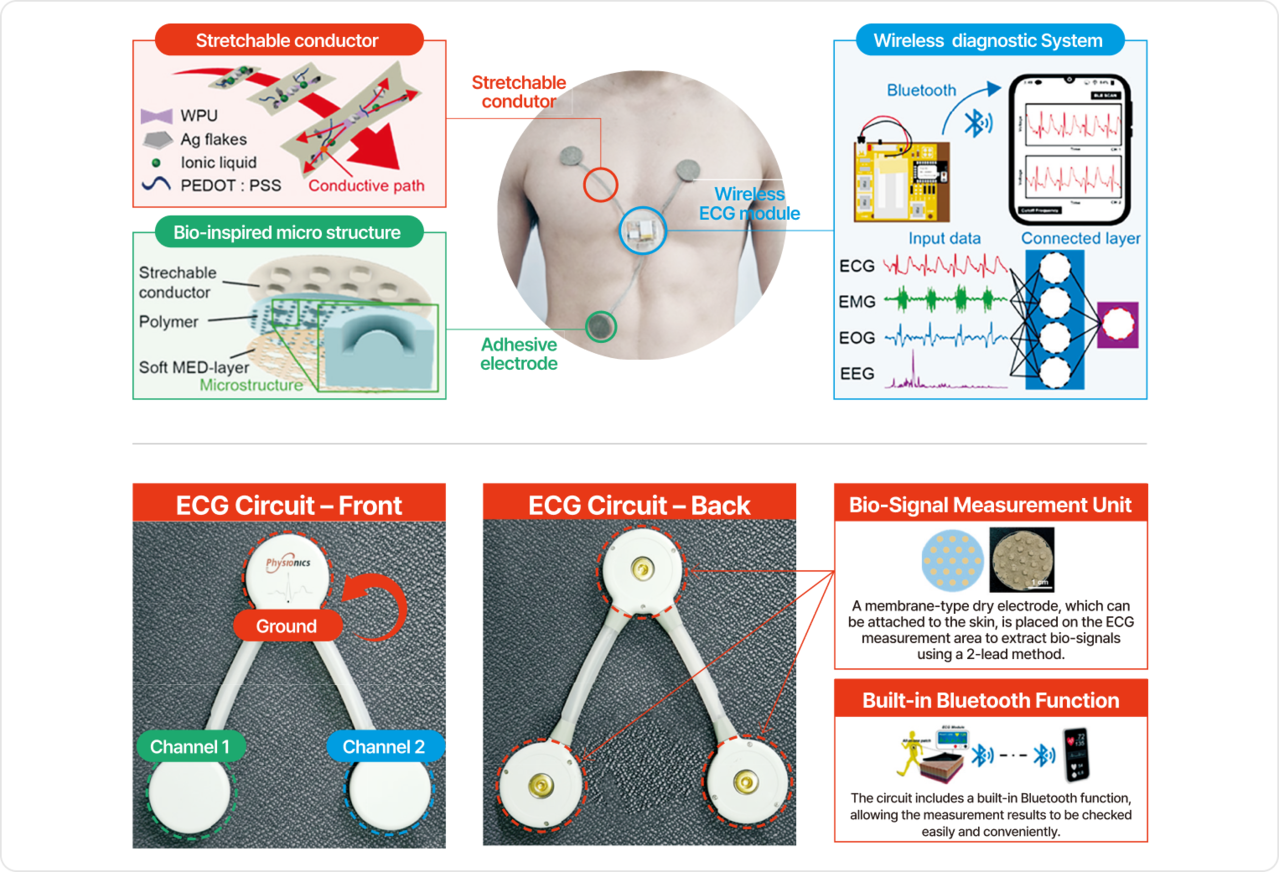

A patch-type biosignal measurement module, in the FPCB format, has improved convenience for attaching on a body with light weight and flexibility. It can measure biopotential signals of two channels (Channel#1, Channel#2) based on the reference electrode. A protection circuit has been installed for electrostatic discharge of the biosignal measurement module and user safety.
Biopotential Channel :
Sampling Rate : 500
Power Consumption : MAX. 0.07 W (3.7 V 20 mA) Communication : Bluetooth Low Ener
Size : 85(W) × 46(D) × 16(H)
Weight : 2.8 gram
Product Overview
Biosignal measurement module using adhesive patch-type dry electrode

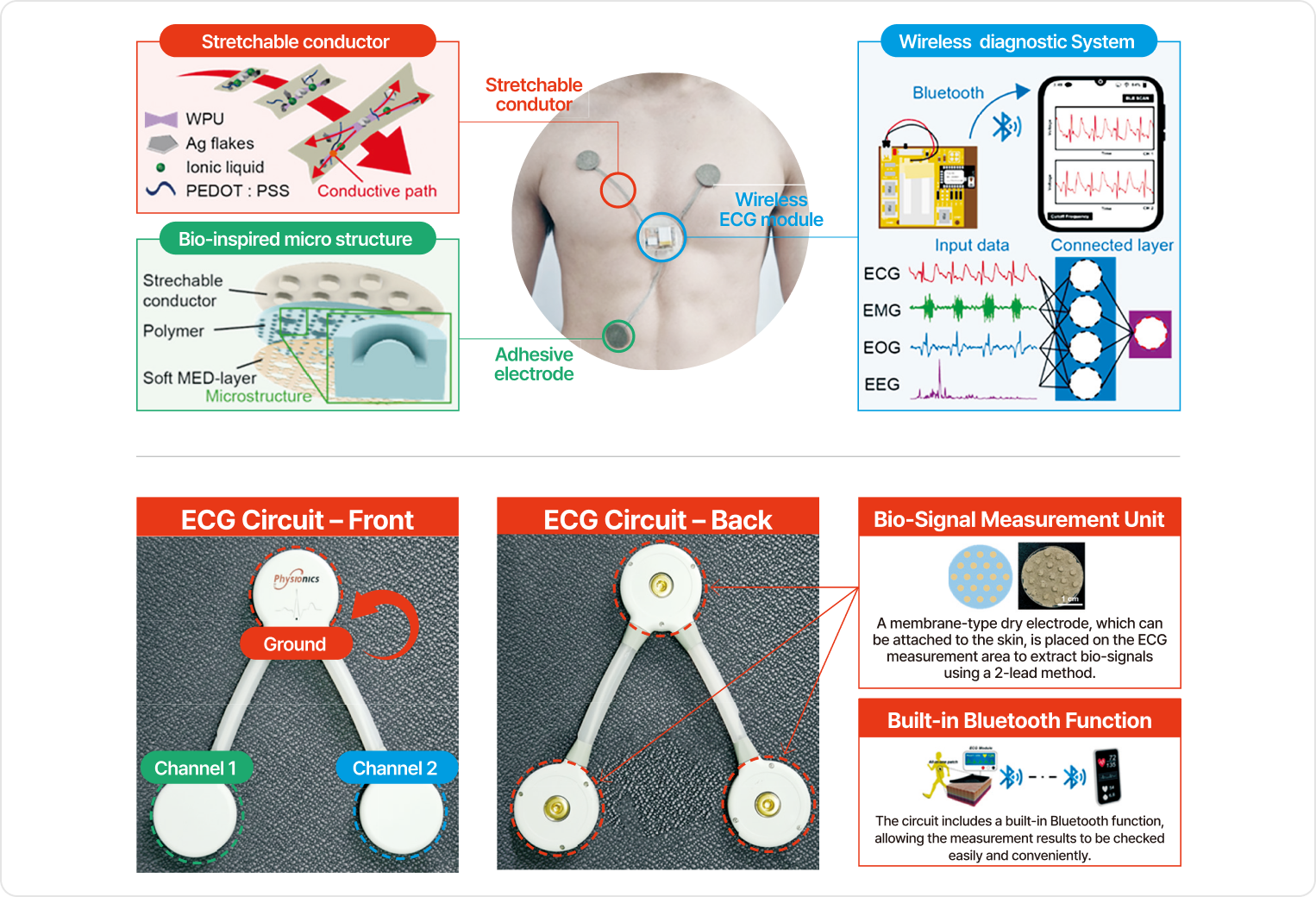

A patch-type biosignal measurement module, in the FPCB format, has improved convenience for attaching on a body with light weight and flexibility. It can measure biopotential signals of two channels (Channel#1, Channel#2) based on the reference electrode. A protection circuit has been installed for electrostatic discharge of the biosignal measurement module and user safety.
Biopotential Channel : 2
Sampling Rate : 500 Hz
Power Consumption : MAX. 0.07 W (3.7 V 20 mA)
Communication : Bluetooth Low Energy
Size : 85(W) × 46(D) × 16(H) mm
Weight : 2.8 gram
